Yanming

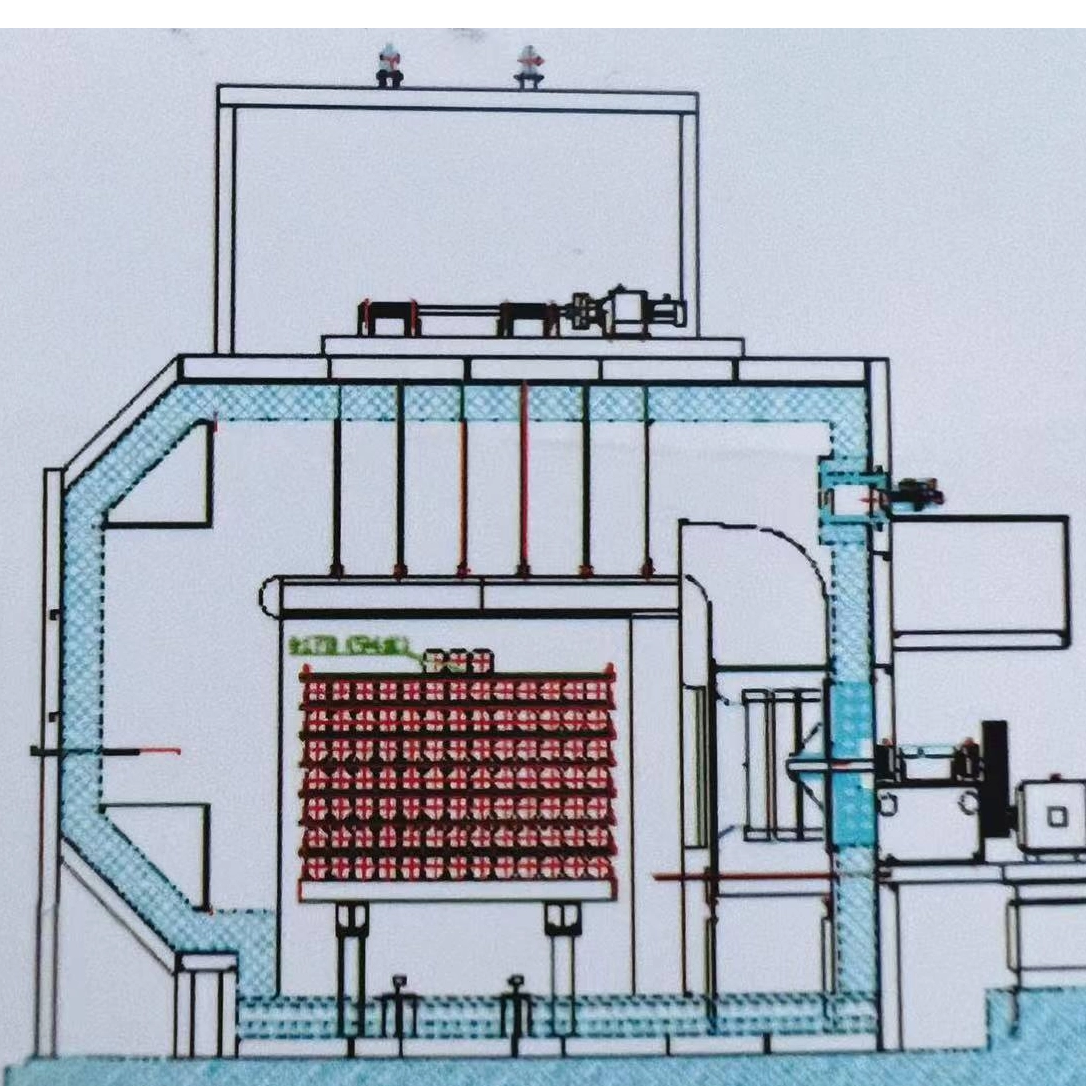

We adhere to strict quality control standards and use advanced production technologies to ensure that our 15MT Homogenizing System meets or exceeds industry standards.And the combustion system is strictly designed in accordance with European mandatory combustion safety regulations, The traditional homogenizing furnace is using stainless steel as furnace chamber, but it will deform in near future, because the temperature inside the furnace is up to 580℃. In our design, we use refractory brick as furnace chamber (Thickness of the wall:500mm) so that to make sure the deformation will not happen.Considering the different needs of our clients, our company supports customized services.In order to provide you with a good service experience,Our dedicated after - sales service team is committed to providing timely and efficient support. And We offer production after - sales services, such as warranty, technical support, etc. Customers can contact us at any time for assistance.
We adhere to strict quality control standards and use advanced production technologies to ensure that our 15MT Homogenizing System meets or exceeds industry standards.And the combustion system is strictly designed in accordance with European mandatory combustion safety regulations, The traditional homogenizing furnace is using stainless steel as furnace chamber, but it will deform in near future, because the temperature inside the furnace is up to 580℃. In our design, we use refractory brick as furnace chamber (Thickness of the wall:500mm) so that to make sure the deformation will not happen.Considering the different needs of our clients, our company supports customized services.In order to provide you with a good service experience,Our dedicated after - sales service team is committed to providing timely and efficient support. And We offer production after - sales services, such as warranty, technical support, etc. Customers can contact us at any time for assistance.

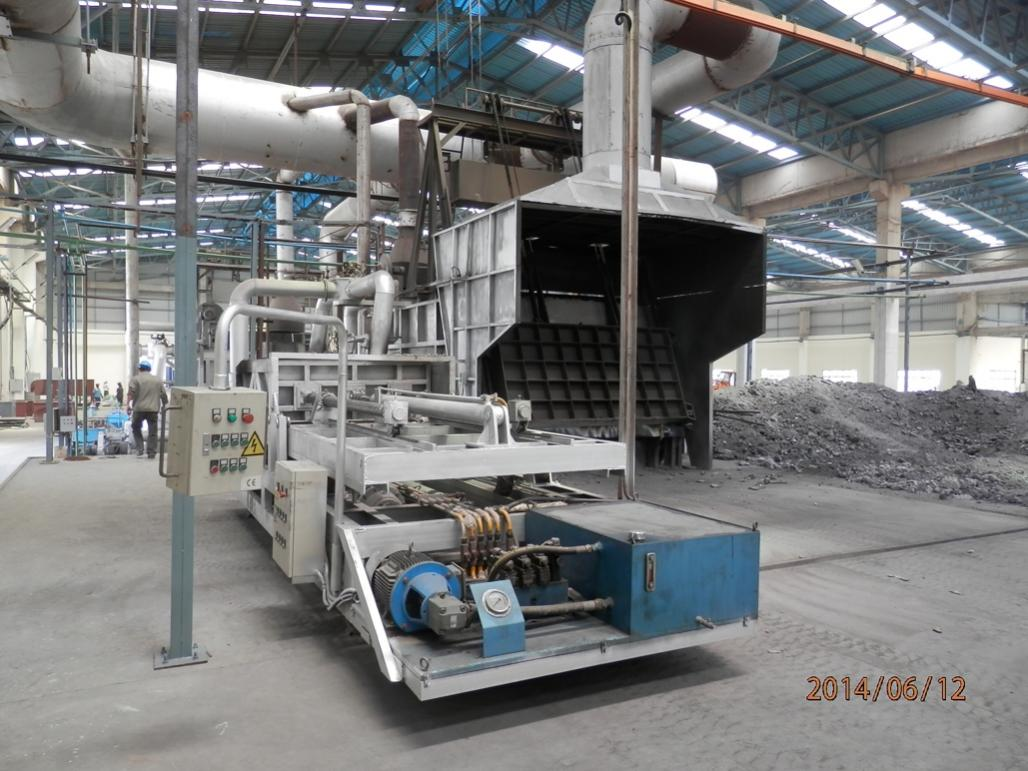

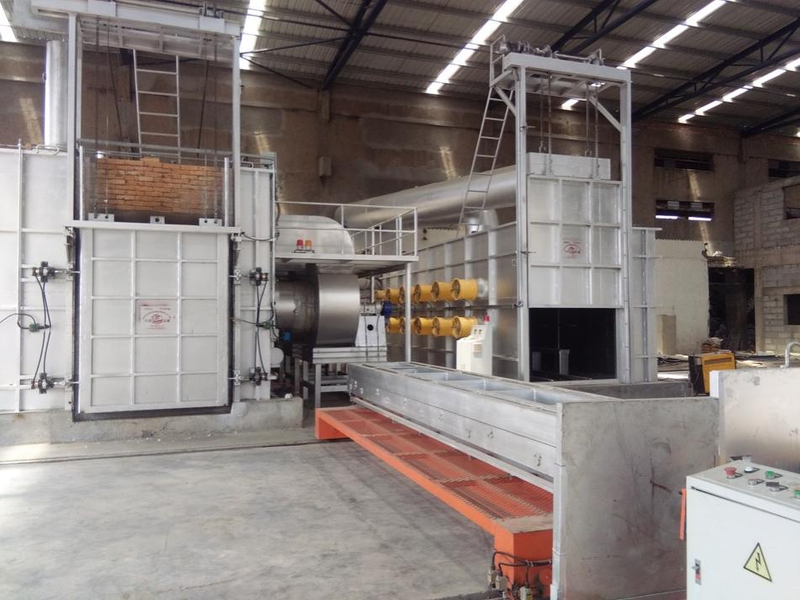

The homogenization furnace system consists of several parts: homogenization furnace, cooling chamber, three-dimensional material cart, material receiving platform, and material cart track. Among them, the cooling room and 3D material truck are equipped with variable frequency controlled low-pressure high air volume axial flow fans. On the one side of cooling furnace has 12 pcs shaft cooling blower for cooing the aluminum rod.And on the top and one side of the room, there are water pipes which spray water-fog for Strong cooling the aluminum rod .The cooling model has three ways for cooing the aluminum rod in according to the different requirement. The first model is Air cooling , the second model is Water cooling , the third model is Air + Water cooling. The chargering car is adapted with remote control, so the worker can be away from the furnace.The combustion system is strictly designed in accordance with European mandatory combustion safety regulations.Unlike other companies, our equipment adopts a horizontal dual cycle approach，make the airflow distribution more uniform,which is one of the few advanced methods in China. Adhering to the design concept of energy conservation and efficiency,The axial flow high air volume fan is equipped with a smaller motor power,fully utilizing the fan's performance to achieve energy -saving effects.Secondly ,the fan is driven by a frequency converter and automatically changes the fan speed and temperature uniformity according to changes in furnace temperature,ensuring the quality of product heat treatment.
The homogenization furnace system consists of several parts: homogenization furnace, cooling chamber, three-dimensional material cart, material receiving platform, and material cart track. Among them, the cooling room and 3D material truck are equipped with variable frequency controlled low-pressure high air volume axial flow fans. On the one side of cooling furnace has 12 pcs shaft cooling blower for cooing the aluminum rod.And on the top and one side of the room, there are water pipes which spray water-fog for Strong cooling the aluminum rod .The cooling model has three ways for cooing the aluminum rod in according to the different requirement. The first model is Air cooling , the second model is Water cooling , the third model is Air + Water cooling. The chargering car is adapted with remote control, so the worker can be away from the furnace.The combustion system is strictly designed in accordance with European mandatory combustion safety regulations.Unlike other companies, our equipment adopts a horizontal dual cycle approach，make the airflow distribution more uniform,which is one of the few advanced methods in China. Adhering to the design concept of energy conservation and efficiency,The axial flow high air volume fan is equipped with a smaller motor power,fully utilizing the fan's performance to achieve energy -saving effects.Secondly ,the fan is driven by a frequency converter and automatically changes the fan speed and temperature uniformity according to changes in furnace temperature,ensuring the quality of product heat treatment.
The homogenization furnace group is mainly composed of a cooling chamber and a three-dimensional material cart .And cooling rooms and three-dimensional material carriers are key equipment for efficient material handling and temperature control in industrial production, widely used in metal processing, food cold chain, semiconductor manufacturing, and other fields.The following are its classic application scenarios.
• Metal processing: The cooling chamber of the aluminum billet homogenizing furnace is used to eliminate casting stresses and enhance the material's mechanical properties.
• Food cold chain: In the quick-freezing food production line, the tunnel-type cooling chamber can achieve rapid freezing at -30°C, preserving the food's texture.
• Electronics manufacturing: Anson Semiconductor's air-cooling chamber reduces energy consumption by 40% through on-demand cooling design, suitable for rapid cooling after chip packaging.
The homogenization furnace group is mainly composed of a cooling chamber and a three-dimensional material cart .And cooling rooms and three-dimensional material carriers are key equipment for efficient material handling and temperature control in industrial production, widely used in metal processing, food cold chain, semiconductor manufacturing, and other fields.The following are its classic application scenarios.
• Metal processing: The cooling chamber of the aluminum billet homogenizing furnace is used to eliminate casting stresses and enhance the material's mechanical properties.
• Food cold chain: In the quick-freezing food production line, the tunnel-type cooling chamber can achieve rapid freezing at -30°C, preserving the food's texture.
• Electronics manufacturing: Anson Semiconductor's air-cooling chamber reduces energy consumption by 40% through on-demand cooling design, suitable for rapid cooling after chip packaging.
